Optical TAPs
Cubro’s Optical TAPs Portfolio

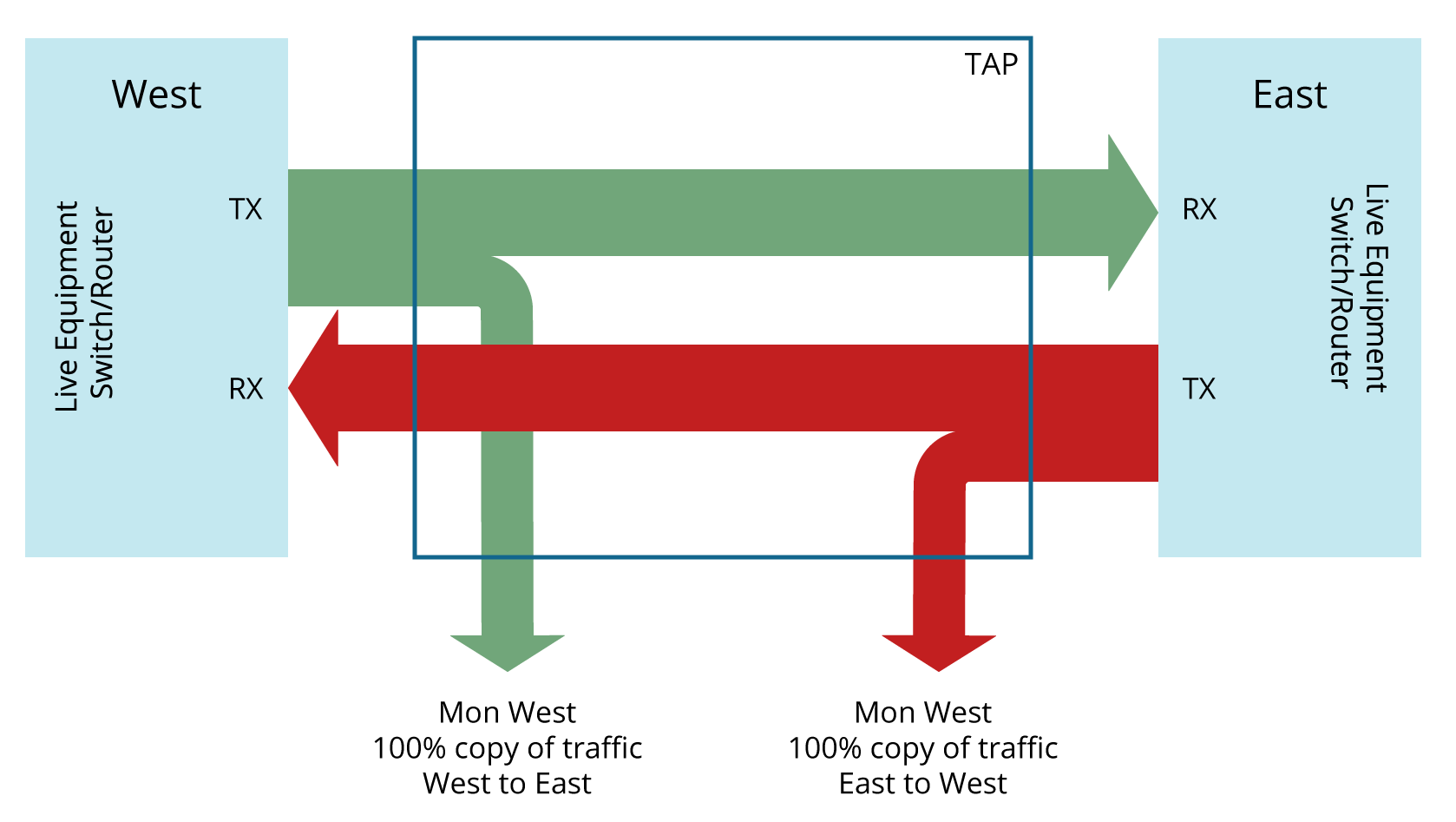

The Cubro Optical TAPs maintain a permanent, entirely passive, connection for monitoring purposes and avoid introducing a potential point of failure or disturbing other network connections. Cubro passive optical TAPs deliver full-duplex monitoring with zero impact on the network.
These TAPs provide a simple but powerful way to conduct in-service monitoring of high-speed optical networks such as SDH/SONET/OTN and Ethernet up to 400 Gbit. Our optical TAPs are completely transparent and offer 100% throughput. Cubro optical TAPs can, therefore, be used for any optical network application, regardless of the bitrate.
Whether the task is the monitoring of STM-64, STM-256, 1G to 400G Ethernet or OTN signals, Cubro is the right choice. The network links can be multimode (850/1300nm) or single mode (1310/1550nm). The TAPs can be used for short-haul as well as long-haul applications.
Why do customers choose Cubro Network TAPs
Each Cubro TAP is built with exacting attention to detail and every single unit is inspected and tested upon completion. Each link of our fiber TAPs is examined and photographed using a precision microscope to ensure that no defects or contaminants are left on the fiber connector. Cubro rigorously tests every TAP to provide the highest quality while maintaining an affordable price point.
Cubro TAPs remain resilient even in the event of a hardware failure. They are engineered to allow traffic to continue to pass along the live link even if the TAP itself stops functioning. Cubro TAPs do not introduce delay or alter the content and do not drop traffic regardless of the bandwidth of the link. Quality assurance and precision are at the core of Cubro and by delivering the best possible products we achieve high customer satisfaction.

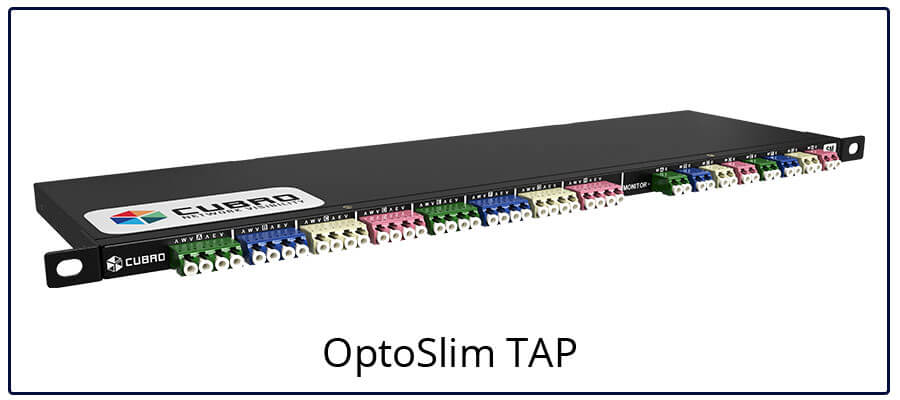

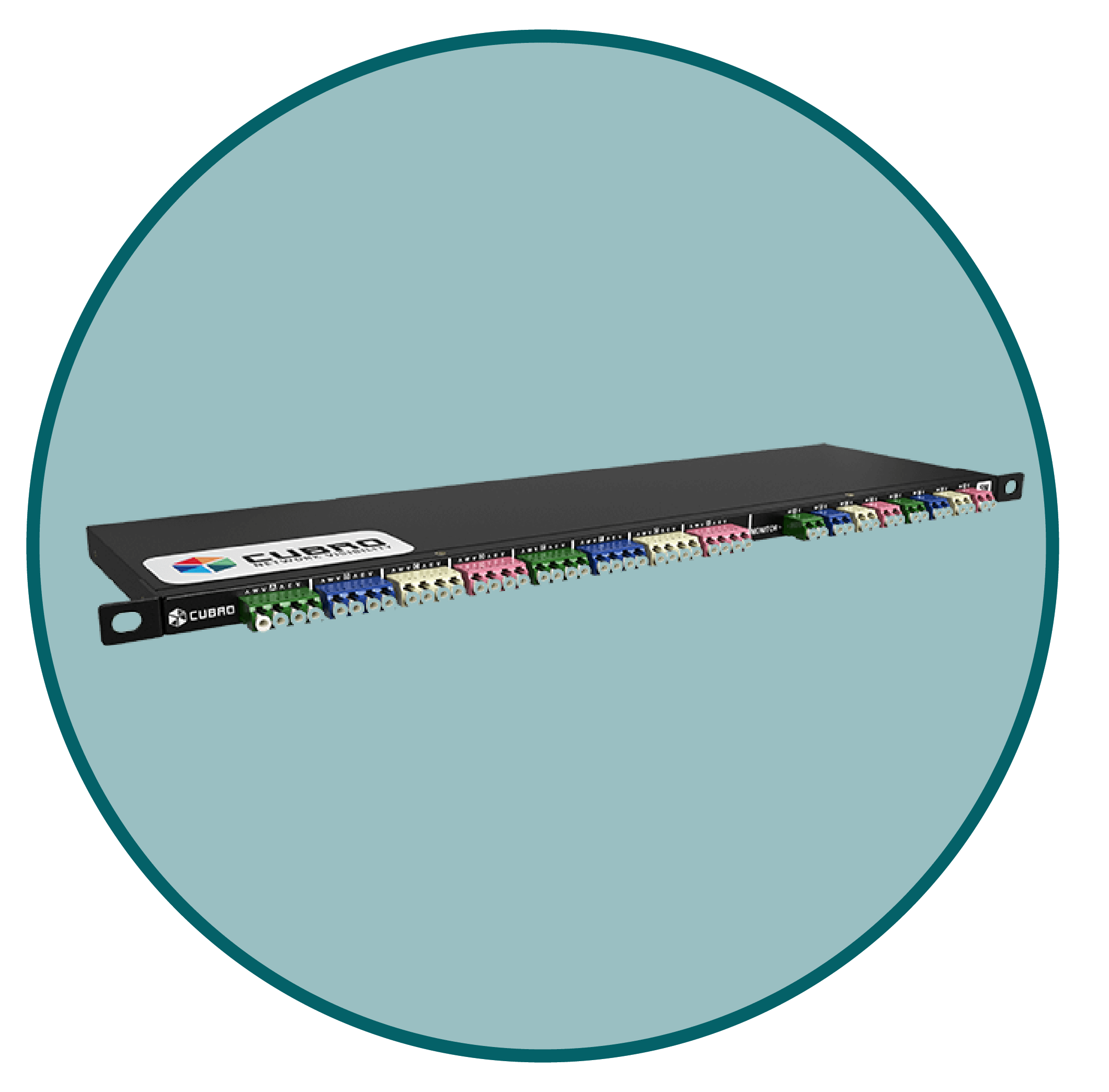

OptoSlim TAP LC – 4 & 8 Link up to 400Gbit
The Cubro OptoSlim TAP Series offers real-time monitoring access to a physical optical data link with zero performance degradation or disruption. For applications requiring high port density, our OptoSlim TAP series offers industry-leading port density in a thin and stackable 1/3RU form factor. The TAPs do introduce additional optical power loss on the active link which varies with the split ratio used; otherwise, the TAP is completely transparent to the network.
Highlights
- Full transparency allows the user to use optical TAPs for all protocols or data rates up to 400 Gbit
- Compatible with 1G SR, 1G LR, 10G SR, 10G LR, 40G LR4, 100G LR4, 400G FR4 and 400G LR4
- No power supply is needed
- Flexible and scalable
- Every splitter used inside the optical TAP is carefully handled
- Insertion loss is measured for each individual TAP produced and the test results are included with the TAP
- Every Cubro Optical TAP supports speeds from 10 Mbps to 400 Gbps
- Passive optical TAPs do not modify or affect traffic in any way. They pass exact copies of all frames/packets including errors.
| Optical connector | LC (Duplex) |
| Certifications | Fully RoHS compliant |
| Linksave | No switching mechanism is included, the link is always connected. The TAP cannot lose any traffic on the link, even if the monitoring ports get damaged or destroyed or in case of a power failure |
| Link Fault Propagation | Due to its fully passive design the TAP is fully transparent to any faults. Thus, if one network side fails, the second link side will also fail without any delay. Re-routing within the network can be initiated within shortest possible time |
| Power | No power needed |
| Wavelengths | Singlemode version 1310/1550nm; Multimode version 850/1300nm. |
| Typical insertion loss link path | Singlemode (80/20) 1.5dB; Multimode version (50/50) 3.8dB |
| Operating Temperature | 0 to 65°C |
| Operating Humidity | 80% maximum relative humidity |
| Rugged 19” housing | 19” 1/3 U high |
| Dimensions | 480 x 147 x 14,5 mm |
| Weight | 1,18 kg |
Product Components
| Part Number | Description |
|---|---|
| CUB.OPTOSLIM-4L-SM | Optical TAP, 4 Links SM; LC connectors, 19″ 1/3U height, splitting ratio 80/20 |
| CUB.OPTOSLIM-4L-SM-5 | Optical TAP, 4 Links SM; LC connectors, 19″ 1/3U height, splitting ratio 50/50 |
| CUB.OPTOSLIM-4L-SM-7 | Optical TAP, 4 Links SM; LC connectors, 19″ 1/3U height, splitting ratio 70/30 |
| CUB.OPTOSLIM-8L-SM | Optical TAP, 8 Links SM; LC connectors, 19″ 1/3U height, splitting ratio 80/20 |
| CUB.OPTOSLIM-8L-SM-5 | Optical TAP, 8 Links SM; LC connectors, 19″ 1/3U height, splitting ratio 50/50 |
| CUB.OPTOSLIM-8L-SM-7 | Optical TAP, 8 Links SM; LC connectors, 19″ 1/3U height, splitting ratio 70/30 |
| CUB.OPTOSLIM-4L-MM | Optical TAP, 4 Links MM 50/125µ; LC connectors, 19″ 1/3U height, splitting ratio 50/50 |
| CUB.OPTOSLIM-4L-MM6 | Optical TAP, 4 Links MM 62,5/125µ; LC connectors, 19″ 1/3U height, splitting ratio 50/50 |
| CUB.OPTOSLIM-4L-MM-7 | Optical TAP, 4 Links MM 50/125µ; LC connectors, 19″ 1/3U height, splitting ratio 70/30 |
| CUB.OPTOSLIM-8L-MM | Optical TAP, 8 Links MM 50/125µ; LC connectors, 19″ 1/3U height, splitting ratio 50/50 |
| CUB.OPTOSLIM-8L-MM6 | Optical TAP, 8 Links MM 62,5/125µ; LC connectors, 19″ 1/3U height, splitting ratio 50/50 |
| CUB.OPTOSLIM-8L-MM-7 | Optical TAP, 8 Links MM 50/125µ; LC connectors, 19″ 1/3U height, splitting ratio 70/30 |
| CUB.OPTOSLIM-4L-MIX | Optical TAP, 2 Links SM 80/20 and 2 Links MM 50/50, LC connectors, 19″ 1/3U height |
| CUB.OPTOSLIM-8L-MIX | Optical TAP, 4 Links SM 80/20 and 4 Links MM 50/50, LC connectors, 19″ 1/3U height |

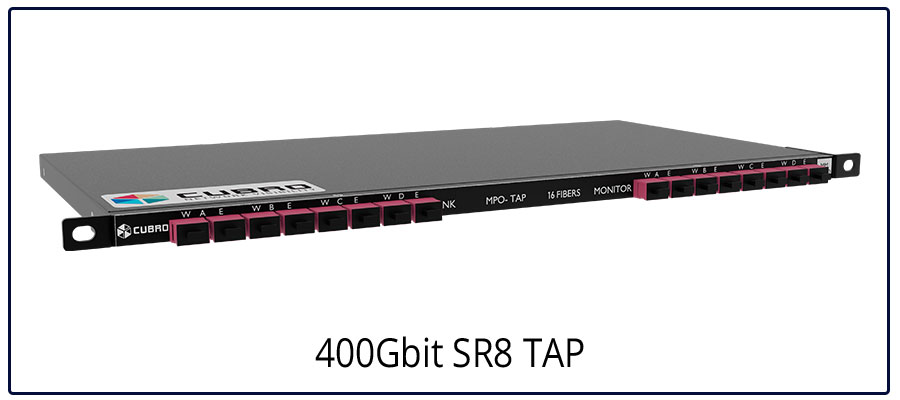

400Gbit SR8 TAP – 2 & 4 Link
Cubro’s 400Gbit SR8 TAPs are passive fibre breakout TAPs that make identical copies of your network’s data, allowing your monitoring tools to see every bit, byte, and packet. They are perfectly suited for tapping 400G SR8 links.
The small form of the TAPs allows to combine up to three different Slimline (different splitting ratios, or different connectors) TAPs in one RU.
Highlights
- Non-disruptive and fully transparent
- Compatible with 400G SR8 interface standards
- Designed for high-speed and lossless packet handling
- Every shipped TAP is delivered with a measurement protocol to ensure quality
- 1 / 3 U form factor with up to 12 links in 1U
- No power supply is needed, and does not have an IP address, providing safety from remote attacks.
- Passive optical TAPs do not modify or affect traffic in any way. They pass exact copies of all frames/packets, including errors.
- Cost-effective with high ROI
| Link | 400G SR8 2 & 4 Link Versions |
| Jumbo Frame Support | The TAP is a passive device and can handle every size of frame. |
| Link Fault Propogation | Due to its fully passive design the TAP is fully transparent to any faults. Thus, if one network side fails, the second link side will also fail without any delay. Re-routing within the network can be initiated within shortest possible time. |
| Dual Monitor Output | Each link has two monitoring outputs – one for westbound traffic and one for eastbound traffic. |
| Easy use and operation | Easy operation and installation No PC or software necessary No bugs, no software Updates mean more time for your business |
| LINKSAVE Function | No switching mechanism is included, the link is always connected. The TAP cannot lose any traffic on the link, even if the monitoring ports get damaged or destroyed or in case of a power failure. |
| Rugged 19” housing | The TAP features a rugged 19″ 1/3RU housing with precise connector labelling on the front panel. |
Product Components
| Part Number | Description |
|---|---|
| CBR.OPTO-SR8-2 | Optical 400G SR8 TAP, 2 Links 50/125μ; MPO16 connectors, 19” 1/3U height, splitting ratio 50/50 |
| CBR.OPTO-SR8-4 | Optical 400G SR8 TAP, 4 Links 50/125μ; MPO16 connectors, 19” 1/3U height, splitting ratio 50/50 |

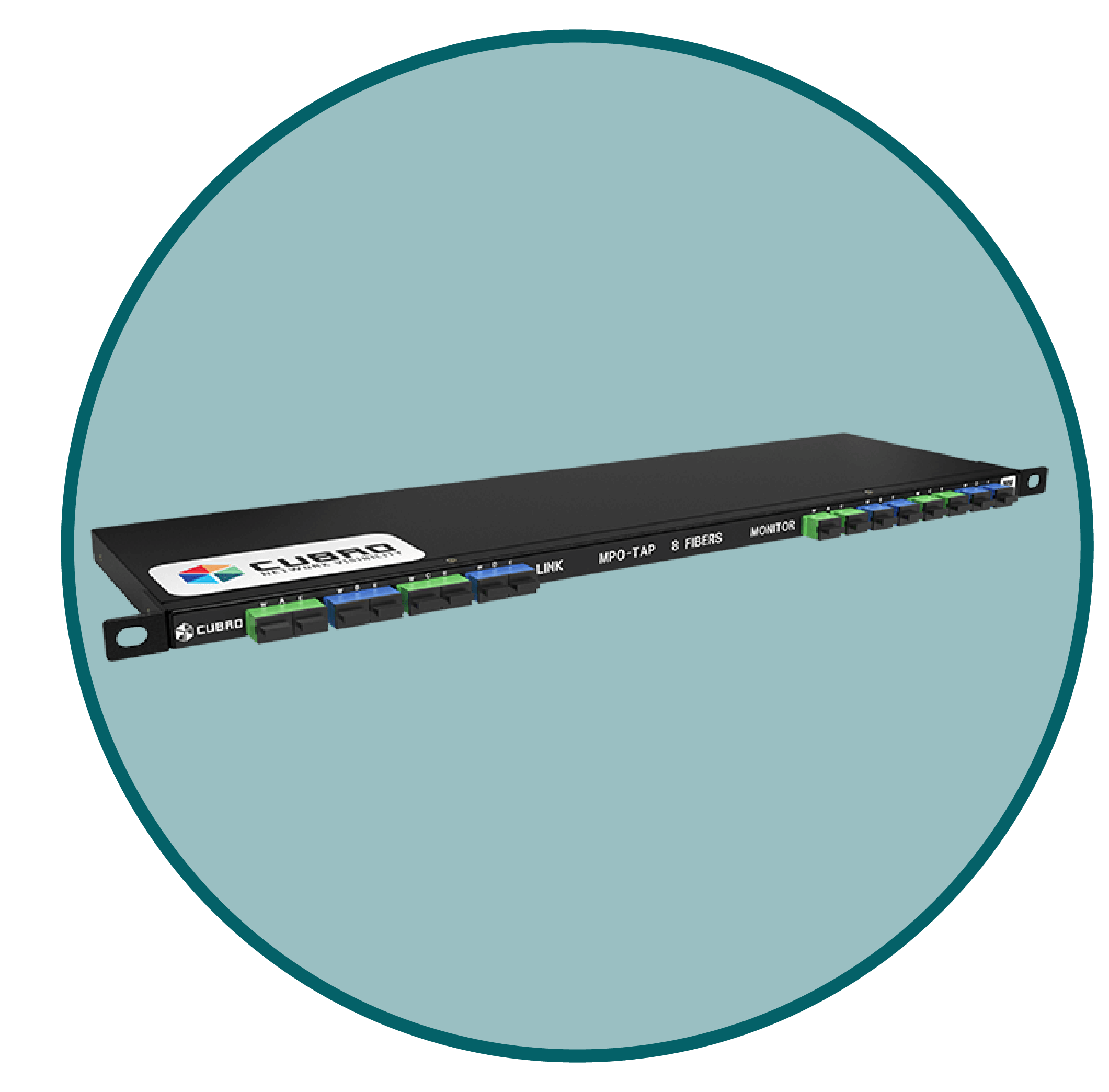

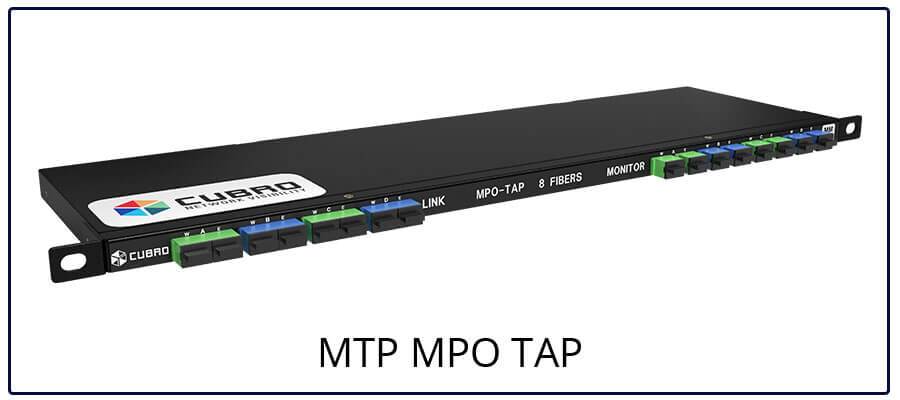

OptoSlim TAP MTP/MPO – 2 & 4 Link up to 400Gbit
Cubro’s MTP/MPO TAPs are passive fibre breakout TAPs that make an identical copy of your network’s data, allowing your monitoring tools to see every bit, byte and packet. It is perfectly suited for any high speed Ethernet applications such 40G, 100G and 400G.
The small form of the TAPs allows to combine up to three different Slimline (different splitting ratio, or different connectors) TAPs in one RU.
Highlights
- Full transparency allows the user to use optical TAPs for all protocols or data rates up to 400 Gbit
- Compatible with 40G SR, 40G PSM4, 100G SR4, 100G PSM4; 400G DR4; 400G XDR4 and 400G PLR4
- Designed for high speed and lossless packet handling
- Every shipped TAP is delivered with a measurement protocol to ensure quality
- 1 / 3 U form factor with up to 12 links in 1U
- Non-disruptive and fully transparent
- No power supply is needed and does not have an IP address, providing safety from remote attacks
- Passive optical TAPs do not modify or affect traffic in any way. They pass exact copies of all frames/packets including errors.
- Cost-effective with high ROI
| Link | 40G SR, 40G PSM4, 100G SR4, 100G PSM4; 400G DR4; 400G XDR4 and 400G PLR4 |
| Jumbo Frame Support | The TAP is a passive device and can handle every size of frame. |
| Link Fault Propogation | Due to its fully passive design the TAP is fully transparent to any faults. Thus, if one network side fails, the second link side will also fail without any delay. Re-routing within the network can be initiated within shortest possible time. |
| Dual Monitor Output | Each link has two monitoring outputs – one for westbound traffic and one for eastbound traffic. |
| Easy use and operation | Easy operation and installationNo PC or software necessaryNo bugs, no softwareUpdates mean more time for your business |
| LINKSAVE Function | No switching mechanism is included, the link is always connected. The TAP cannot lose any traffic on the link, even if the monitoring ports get damaged or destroyed or in case of a power failure. |
| Rugged 19” housing | The TAP features a rugged 19″ 1/3RU housing with precise connector labelling on the front panel. |
Product Components
| Part Number | Description |
|---|---|
| CBR.OPTO-MTP-1 | MTP TAP 40-100Gbit, Singleport, Multimode, 19″ 1/3U height |
| CBR.OPTO-MTP-2 | MTP TAP 40-100Gbit, Dualport, Multimode, 19″ 1/3U height |
| CBR.OPTO-MTP-4 | MTP TAP 40-100Gbit, 4 link Multimode, 19″ 1/3U height |
| CBR.OPTO-MTP-SM-2 | MTP TAP 40-100GBit, 2 Link, Singlemode, 19″ 1/3U height |
| CBR.OPTO-MTP-SM-4 | MTP TAP 40-100GBit, 4 Link, Singlemode, 19″ 1/3U height |

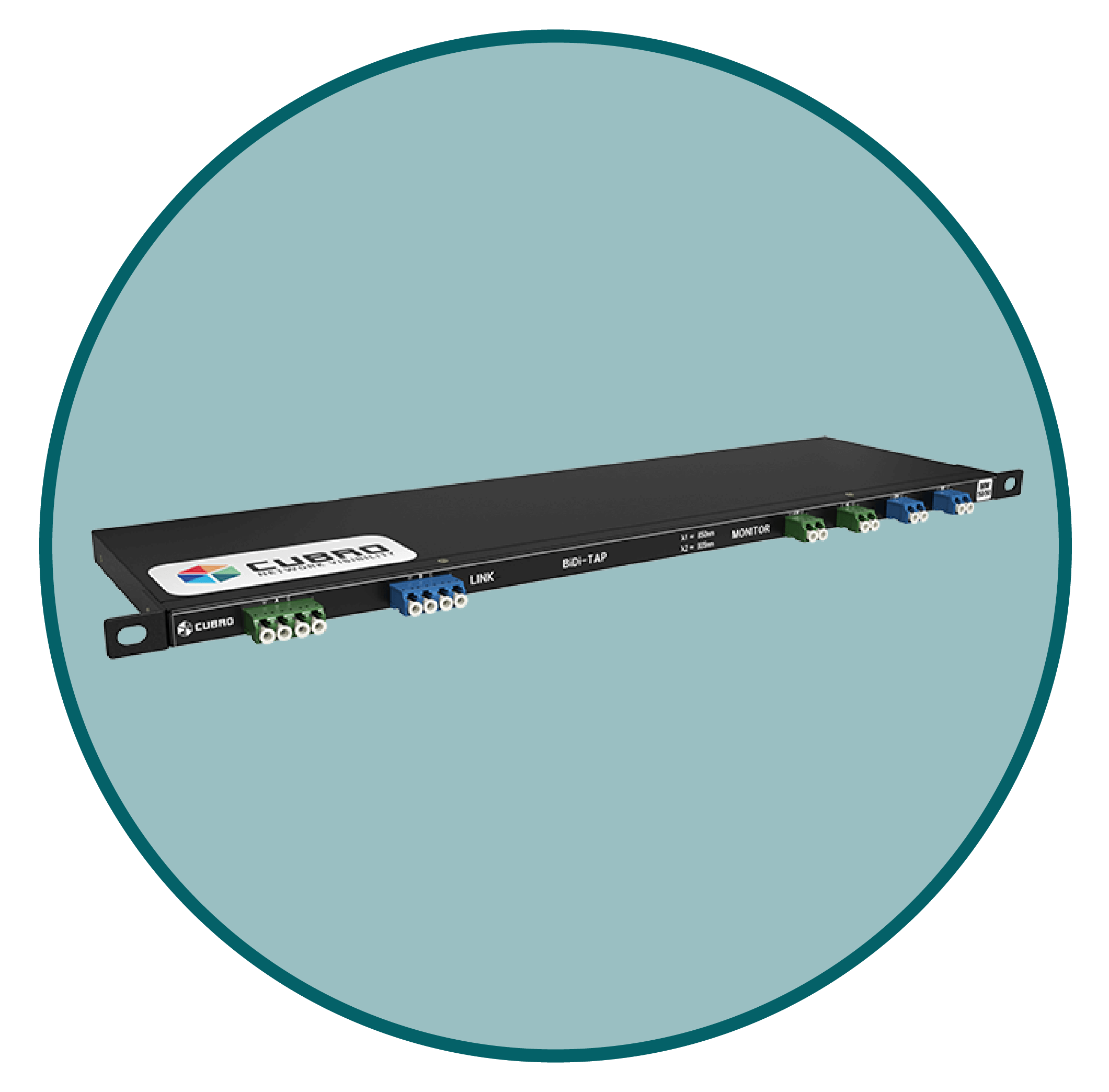

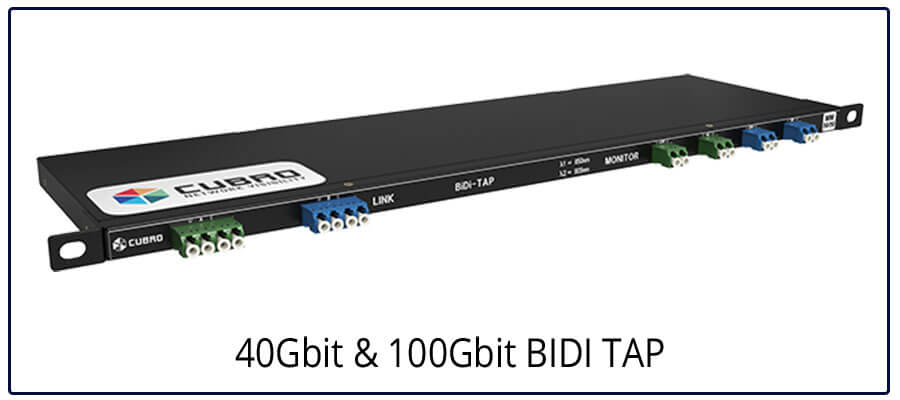

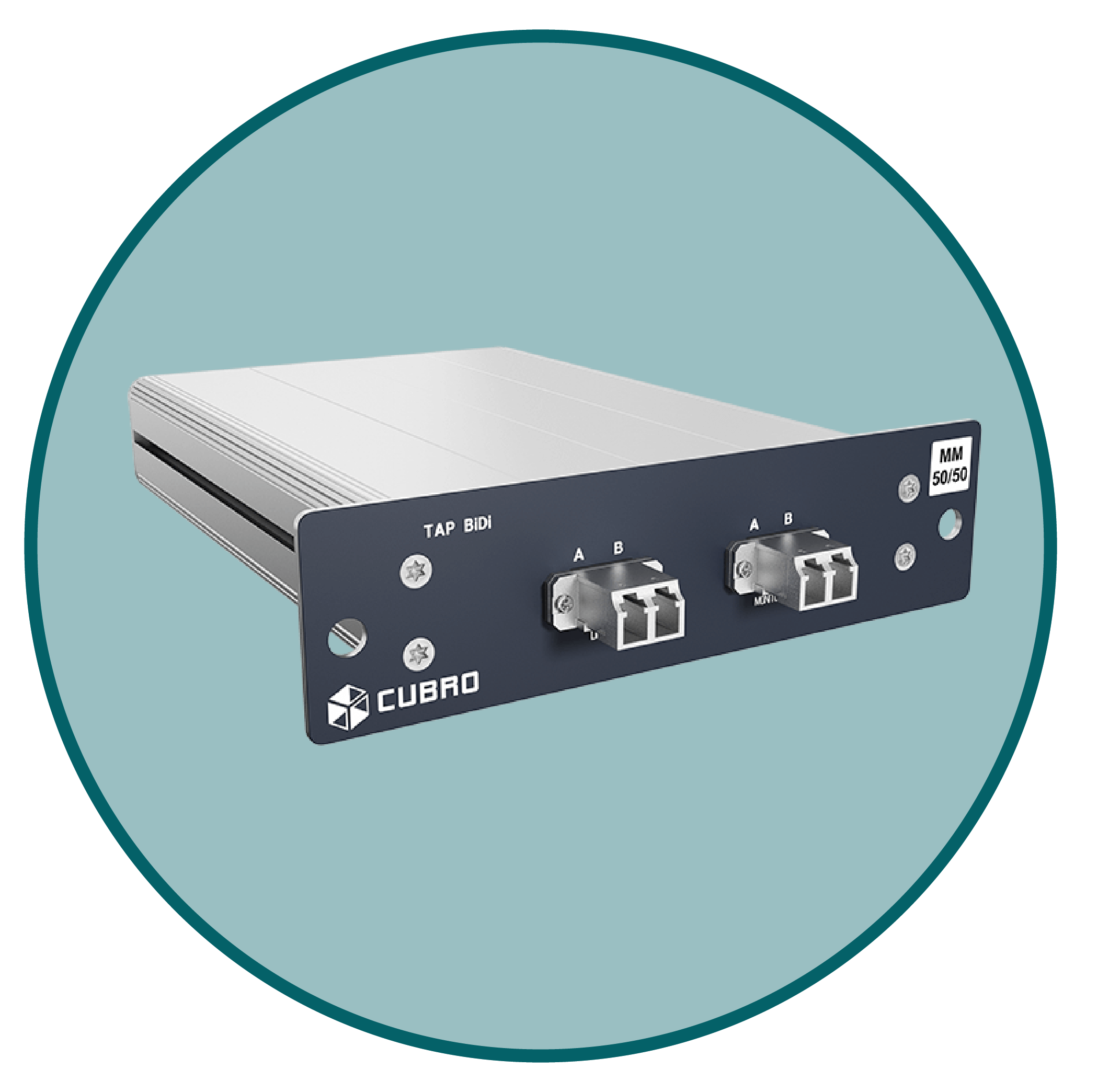

40Gbit & 100Gbit BIDI TAP
The Cubro 40&100Gbit BiDi TAP is the perfect choice when visibility into Cisco BiDi 40Gbit links or 100Gbit links is required. This TAP allows getting easy access to traffic flowing on Cisco BiDi links without interfering with live data transfer. Feeding BiDi traffic to security and analytic tools has never been easier, particularly when the 40&100Gbit BiDi TAP is used together with a Cubro Advanced Network Broker that can easily deal with BiDi traffic.
Highlights
- Provide visibility to bidirectional 40Gb and 100Gb traffic
- Provides non-intrusive visibility into Cisco 40&100Gbit BiDi links and compatible infrastructure
- Make 100% copy of network data allowing the monitoring tools to see every bit, byte and packet
- No power supply needed, completely passive
- Flexible and scalable
- Cost effective
| Application | Non-intrusive tapping of Cisco 40G and 100Gbit links |
| Number of Links | 1 Link or 2 Links version available |
| Applicable Fiber | OM4 or OM5 |
| Connector Type | LC duplex |
| Split Ratio | 50 / 50 |
| Typ. Insertion Loss | 3,5dB |
| Transparency | Fully transparent |
| Electrical Power Supply | None – fully passive |
| Physical Dimensions (H x W x D) | 480 x 147 x 14,5 mm; fully compatible for 19” rack installation |
| Weight | 1,6kg |
Product Components
| Part Number | Description |
|---|---|
| CUB.OPTOSLIM-1L-40G-C | Optical BiDi TAP MM, 1 Link CISCO 40&100Gbit BiDi SR, LC |
| CUB.OPTOSLIM-2L-40G-C | Optical BiDi TAP MM, 2 Links CISCO 40&100Gbit BiDi SR, LC |

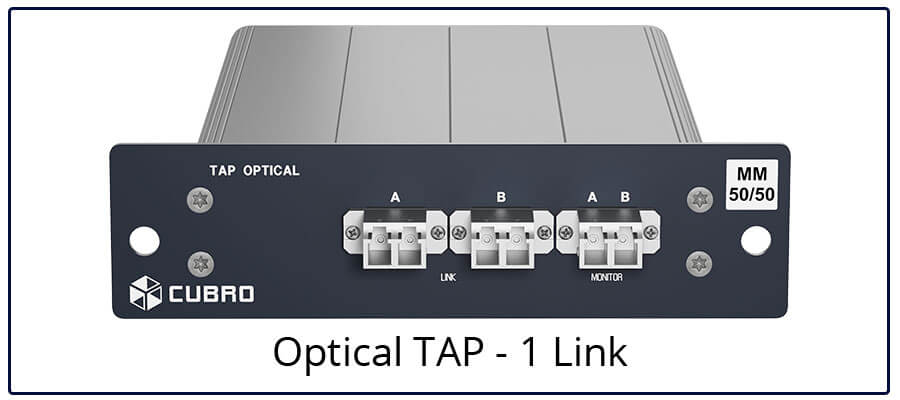

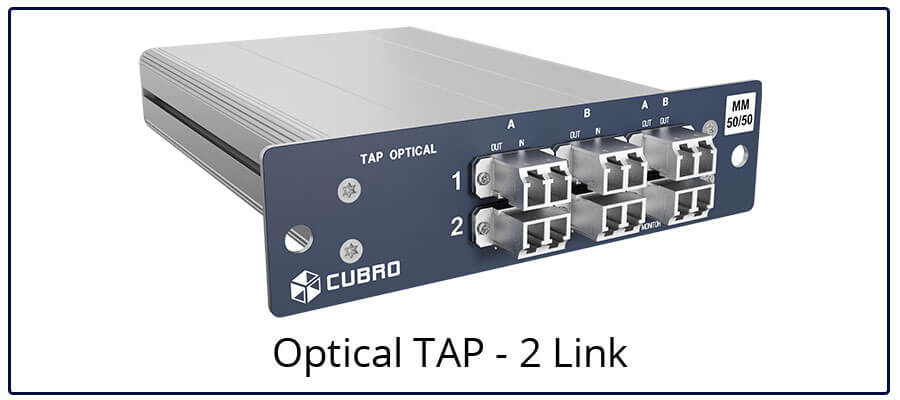

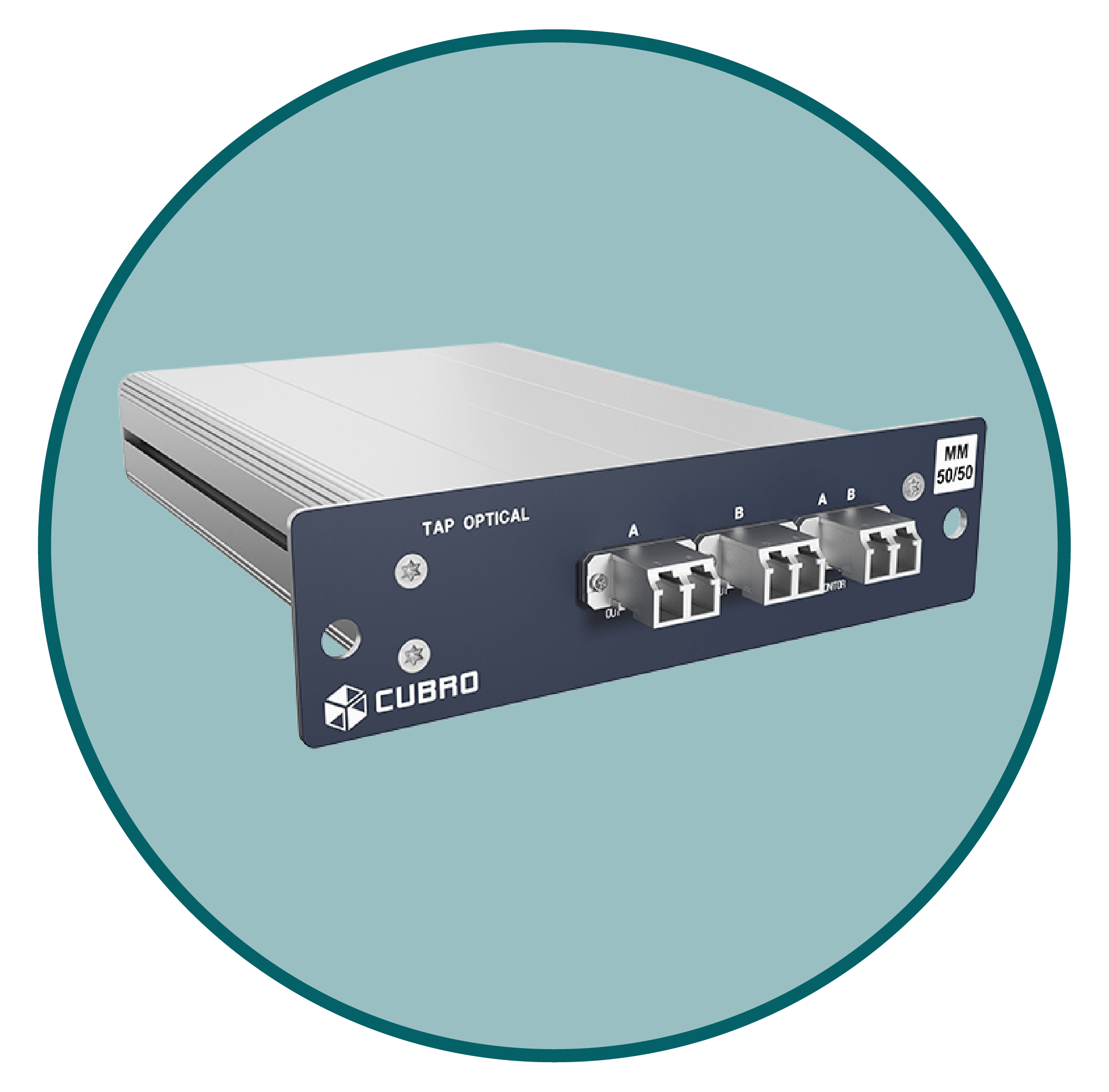

Optical TAP (Portable TAP LC) – 1 & 2 Link up to 400Gbit
Single and two link TAPs are available for smaller-scale deployments with optional rack mounting accessories. An optical TAP gives you real-time monitoring access to a physical optical data link without interfering with it. Due to the fact that the optical TAP is fully passive (no power supply needed), it is no risk to putting it in an active link.
Highlights
- Full transparency allows users to use optical TAPs for all protocols or data rates up to 400 Gbit
- No power supply is needed
- Flexible and scalable
- Every used splitter inside the optical TAP is carefully handled
- Insertion loss is measured before the unit leaves to the customer
- Split ratio can be delivered on-demand
| Link Type/Number | Singlemode or Multimode; 1 or 2 link version |
| Compatible to | 1G SR, 1G LR, 10G SR, 10G LR, 40G LR4, 100G LR4, 400G FR4 and 400G LR4 |
| Transparency and Delay | 100% transparent and 0ns delay |
| Operating Temperature | 0 to 55°C |
| Operating Humidity | 80% maximum relative humidity |
| Physical Dimensions (H x W x D) | 3 x 11,2 x 17 cm 1,8 x 4,4 x 6,7 in |
| Cabinet | Ruggedized Aluminium Housing with precise connector labelling on front panel. 19“ Rack mount kit also available |
Product Components
| Part Number | Description |
|---|---|
| CBR.OPTO-1-SM-R3 | Optical TAP, 1 Link SM 1310/1550nm LC, 2 Monitor Ports LC; 1/3 19″ rackmount housing, splitting ratio 80%/20% (rackmount kit not included) |
| CBR.OPTO-1-SM-5-R3 | Optical TAP, 1 Link SM 1310/1550nm LC, 2 Monitor Ports LC; 1/3 19″ rackmount housing, splitting ratio 50%/50% (rackmount kit not included) |
| CBR.OPTO-2-SM-R3 | Optical TAP, 2 Links SM 1310/1550nm LC, 4 Monitor Ports LC; 1/3 19″ rackmount housing, splitting ratio 80%/20% (rackmount kit not included) |
| CBR.OPTO-2-SMMM-R3 | Optical TAP, 1 Link SM and 1 Link MM LC , 4 Monitor Ports LC; 1/3 19″ rackmount housing, splitting ratio 80%/20% SM and 50%/50% MM |
| CBR.OPTO-1-MM-R3 | Optical TAP, 1 Link MM 850/1300nm LC, 2 Monitor Ports LC; 1/3 19″ rackmount housing, splitting ratio 50%/50% (rackmount kit not included) |
| CBR.OPTO-1-MM-7-R3 | Optical TAP, 1 Link MM 850/1300nm LC, 2 Monitor Ports LC; 1/3 19″ rackmount housing, splitting ratio 70%/30% (rackmount kit not included) |
| CBR.OPTO-2-MM-R3 | Optical TAP, 2 Links MM 850/1300nm LC, 4 Monitors, Ports LC; 1/3 19″ rackmount housing, splitting ratio 50%/50% (rackmount kit not included) |

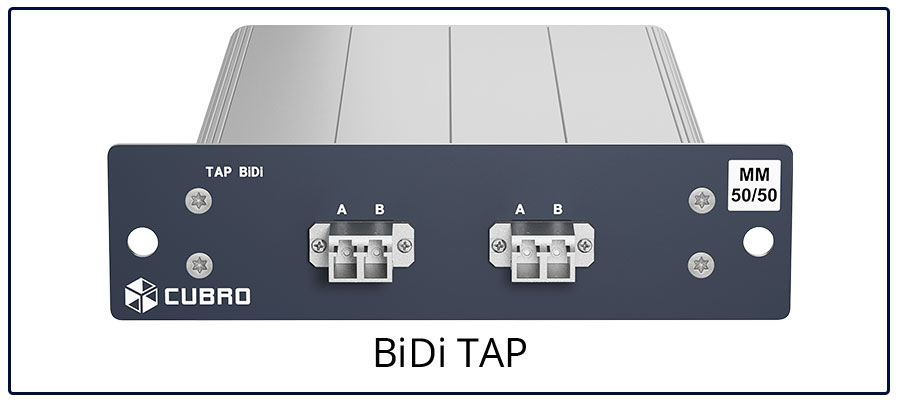

BIDI TAP -Portable BIDI TAP – 1 Link for 1310/1490/1550nm

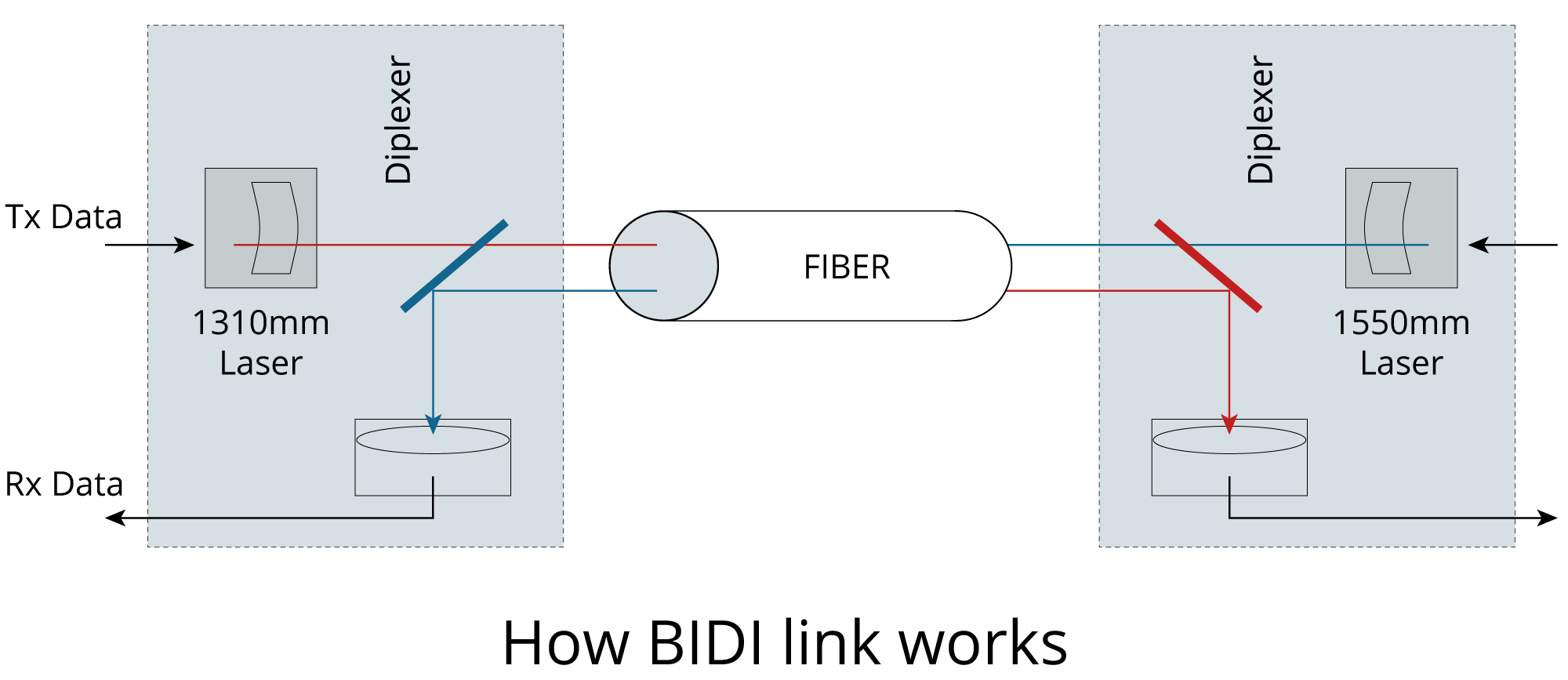

Cubro optical BiDi TAPs are for bidirectional network links where the TX and RX signals are carried on the same fiber. Cubro BIDI TAPs provide visibility to bidirectional links. The TAPs export monitored traffic gathered from two transmitted signals, providing complete coverage for analytic and security tools. There are new smart concepts of tapping a link with two different wavelengths over the existing infrastructure with BIDI SFP which transports up to 10 Gbit duplex over only one fibre. A BIDI link uses one fibre to build a duplex link and helps to reduce costs.
Highlights
- Provides visibility to bidirectional traffic
- Full transparency, adds no delay
- Makes 100% copy of network data allowing the monitoring tools to see every bit, byte and packet
- No power supply needed, completely passive
- Cost-effective
- Low insertion loss
- Flexible and scalable
- Every used splitter inside the optical BIDI TAP is carefully handled
| Link Type/Number | Singlemode BIDI 1310/1490/1550nm; 1 or 2 link version |
| Transparency and Delay | 100% transparent and 0ns delay |
| Operating Temperature | 0 to 55°C |
| Operating Humidity | 80% maximum relative humidity |
| Physical Dimensions (H x W x D) | 3 x 11,2 x 17 cm 1,8 x 4,4 x 6,7 in |
| Cabinet | Ruggedized Aluminium Housing with precise connector labelling on front panel. 19“ Rack mount kit also available |
Product Components
| Part Number | Description |
|---|---|
| CBR.BIDI-SM-1-R3 | Optical BIDI TAP SM, 1 Link SM LC-duplex, Monitor Ports SM LC duplex; 1/3 19″ rackmount housing (rackmount kit not included) |
| CBR.RM19-3 | CUBRO 19″ Rackmount Kit for 3x 1/3 19″ units |
